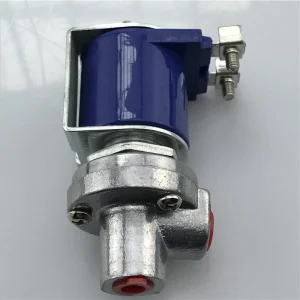

Part No. 2030060
24 VDC pilot solenoid with Class F coil and NEMA 4 enclosure, 1/8″ FNPT ports (Goyen 3D2TF/1484B). Reliable actuator for diaphragm pulse valves and pneumatic control.
The 2030060 Solenoid – 1/8″ FNPT, 24 VDC, Class F Coil, NEMA 4 (Goyen 3D2TF/1484B) is a compact, industrial-duty pilot solenoid designed to actuate diaphragm pulse valves in dust collector systems and other automation circuits. The Class F coil supports elevated winding temperatures for reliable service, while the NEMA 4 enclosure resists washdown, dust, and weather exposure. With 1/8″ FNPT ports, this unit installs easily into pilot lines for remote-mounted pulse valves and general pneumatic control.
Valve Type: Pilot solenoid for diaphragm pulse valves
Port Size: 1/8″ FNPT
Voltage: 24 V DC
Coil Insulation Class: F
Enclosure: NEMA 4 (splash-/dust-tight)
Manual Override: (If equipped; specify at order)
Typical Media: Compressed air (filtered, dry)
Typical Uses: Pilot actuation for Goyen/other diaphragm valves, pneumatic control circuits
