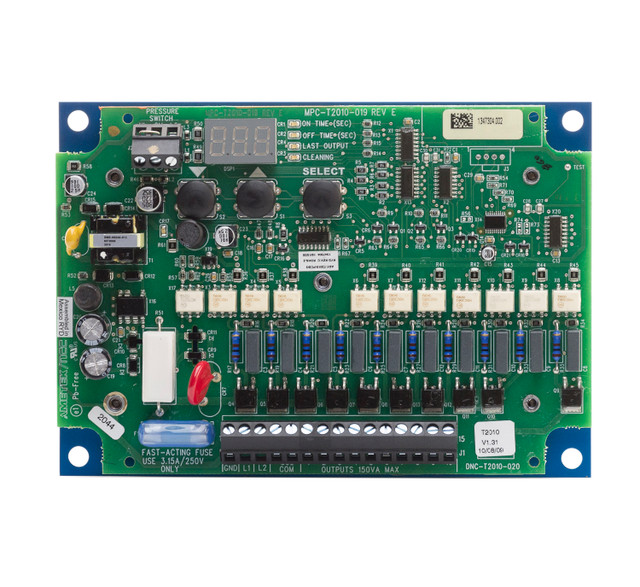

Timer Board – Ametek NCC DNC-T2010-020, 10 Position, 95–265 VAC, 50 ms–600 s On, 1–999 s Off, Compact Footprint

The IAC 2090336 timer board is the Ametek NCC DNC-T2010-020 model, a 10-position control board with a compact footprint for space-constrained installations. Operating on a universal voltage range of 95–265 VAC, it provides adjustable on-times from 50 milliseconds to 600 seconds and off-times from 1 to 999 seconds, enabling precise timing control for dust collector pulse-cleaning systems.

This compact version offers the same functionality as the DNC-T2010-R20 but in a smaller form factor, making it ideal for control panels where space is limited. It is suited for medium-size multi-valve systems requiring dependable and adjustable pulse timing.

Key Features:

• IAC Part No.: 2090336

• Manufacturer: Ametek NCC

• OEM Part No.: DNC-T2010-020

• 10-position timer board

• Compact footprint compared to DNC-T2010-R20

• Voltage: 95–265 VAC

• On-time range: 50 ms–600 s adjustable

• Off-time range: 1–999 s adjustable

• Designed for dust collector pulse-cleaning systems

Cross Reference Compatibility:

• OEM Reference: Ametek NCC DNC-T2010-020

• Alternative Model: DNC-T2010-R20 (larger footprint)

• Fits systems requiring 10-position timer boards with compact dimensions
