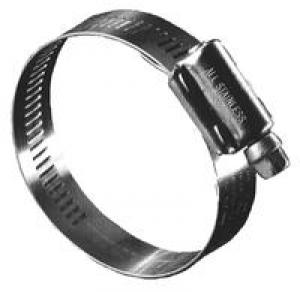

Ideal 6L60052 Lined Power Gear Worm Gear Clamp – 5 1/4″ to 6 1/8″ Range, All Stainless Steel

The Ideal 6L60052 Lined Power Gear Worm Gear Clamp is engineered for heavy-duty sealing in bottom load and high-vibration applications. With a lined inner surface, it protects hoses and filter bag cuffs from damage during tightening, while maintaining a secure, leak-free seal.

Designed for a size range of 5 1/4″ to 6 1/8″, this clamp uses a 5/8-inch wide Type 300 stainless steel band and 300 stainless steel housing for superior corrosion resistance. The 5/16-inch hex head screw is Type 410 stainless steel, providing high strength for repeated tightening cycles. Suitable for industrial dust collection, pneumatic conveying, and other demanding environments.

Key Features:

• OEM Model: Ideal 6L60052

• Size Range: 5 1/4″ to 6 1/8″

• Band Width: 5/8″

• Material – Band: Type 300 Stainless Steel

• Material – Housing: Type 300 Stainless Steel

• Material – Screw: Type 410 Stainless Steel, 5/16″ Hex Head

• Clamp Style: Lined Power Gear Worm Gear

• Applications: Bottom load filter bag mounting, hose sealing, duct connections

• Recommended Install Torque: 75–90 lb-in

• Corrosion Resistant: Yes
