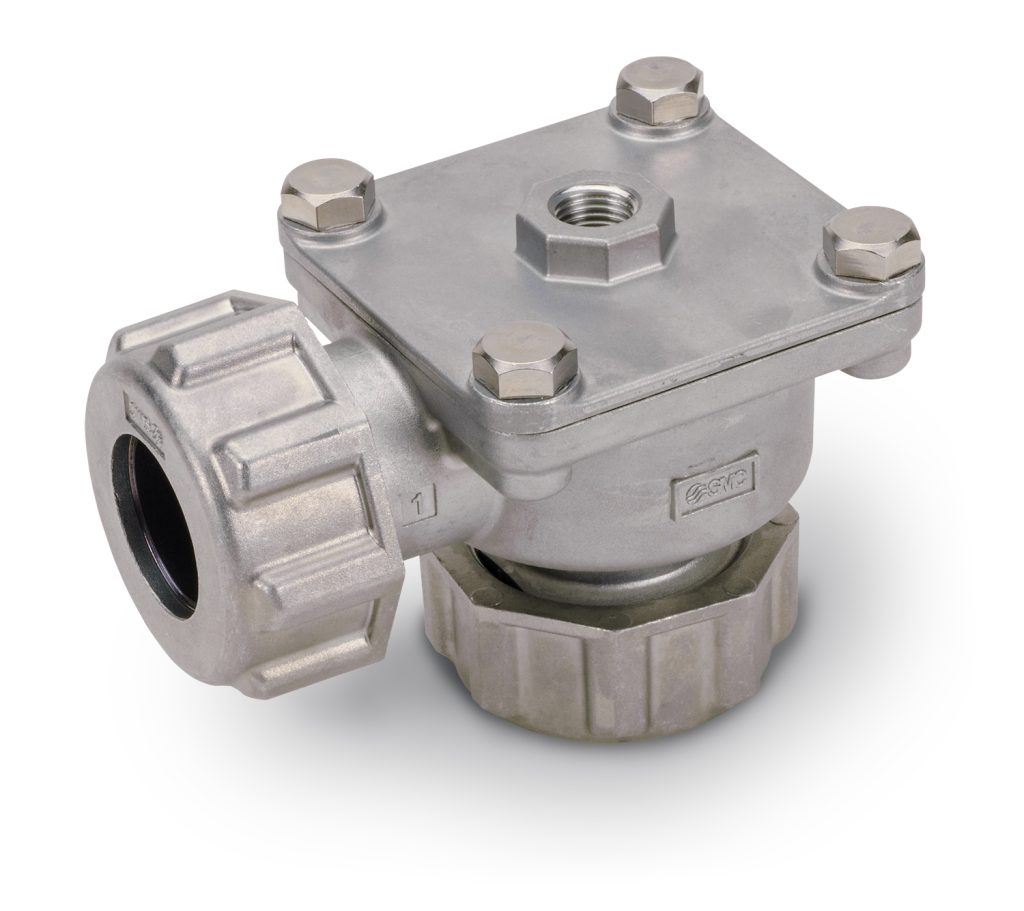

SMC JSXFAE-06N-B-1 Pulse Valve

Pulse jet valves are crucial components in baghouses and dust collectors with pulse jet cleaning systems. SMC’s Air Operated JSXFA Series Pulse Valves feature a robust elastomer diaphragm that operates without a spring, significantly extending its service life to over 10 million cycles.

This design also ensures faster response times and energy savings. The valve rapidly opens and closes to produce a short, intense air blast with a sonic shock wave, effectively dislodging accumulated dust from bag and cartridge filters without interrupting normal operations.

Features of SMC JSXFA Air Operated Type Pulse Valves:

• Service Life: 10 million plus cycles
• Maximum: 35% reduced air consumption
• Maximum: 15% increased peak pressure
• Threaded and compression fitting connection
• Standard and 56 ATEX Category 3 (by special order – call IAC)

For Industries:

• Agriculture and Grain Processing
• Battery Manufacturing, Storage, & Recycling
• Biomass and Biofuels
• Cement and Lime
• Chemicals and Pharmaceuticals
• Food, Pet Food, and Beverage
• Foundries and Metal Fabrication
• Frac Sand and Industrial Sand
• General Manufacturing
• Lumber and Wood Products
• Mining and Minerals
• Oil and Gas
• Plastics
• Paper and Pulp Processing
• Pharmaceutical Processing
• Powder and Bulk Solids Handling
• Power Generation
• Rubber Processing
• Steel and Smelting

Need help selecting the right pulse valve? Click the configurator button, or view SMC’s JSXF Product Series Catalog PDF.
