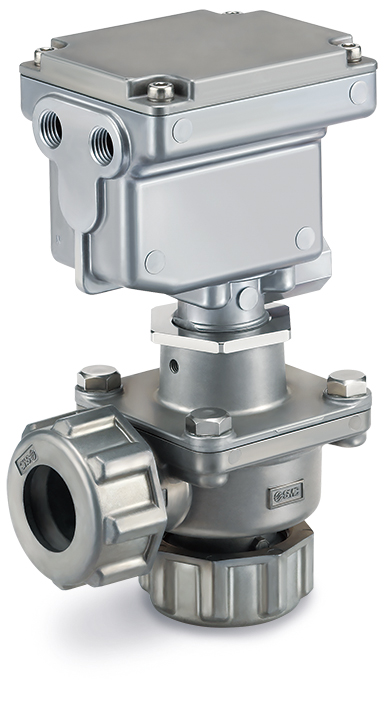

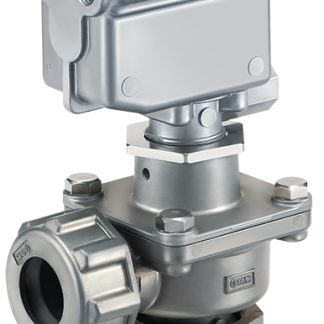

SMC JSXFE-06N-5PBB Pulse Valve

Pulse jet valves are crucial components in baghouses and dust collectors with pulse jet cleaning systems. SMC’s SMARTVENT JSXF Series Pulse Valves feature an integrated control board which eliminates the need for a control box. It also has a robust elastomer diaphragm that operates without a spring, significantly extending its service life to over 10 million cycles.

This design also ensures faster response times and energy savings. The valve rapidly opens and closes to produce a short, intense air blast with a sonic shock wave, effectively dislodging accumulated dust from bag and cartridge filters without interrupting normal operations.

Features of SMC JSXF SMARTVENT Series Pulse Valves:

• Service Life: 10 million plus cycles
• Maximum: 35% reduced air consumption
• Maximum: 15% increased peak pressure
• Piping: compression, direct, immersion
• No control box required – allows for reduced wiring
• Controls 32 units total
• IP66, 67, NEMA4
• Operating pressure: 0.1 to 0.9 Mpa

For Industries:

• Battery Manufacturing, Storage, & Recycling
• Biomass and Biofuels
• Cement and Lime
• Chemicals and Pharmaceuticals
• Foundries and Metal Fabrication
• Frac Sand and Industrial Sand
• General Manufacturing
• Lumber and Wood Products
• Mining and Minerals
• Oil and Gas
• Plastics
• Paper and Pulp Processing
• Pharmaceutical Processing
• Powder and Bulk Solids Handling
• Power Generation
• Rubber Processing
• Steel and Smelting

Need help selecting the right pulse valve? Click the configurator button, or view SMC’s JSXF Product Series Catalog PDF.
